Class A (Gas)

Everything on this page will fit your motorhome!

Hitch Bar Mounted
#10-4217 & #10-4217-3
These are our strongest Hitch bar mount skid wheels. 3" x 2-3/16" wheels are machined out of solid steel, with roller bearings and grease fittings for easy lubrication. Tough enough to be used on the largest and heaviest motorhomes.

Total height measures 3.5" from the top of mounting plate to the bottom of the wheel.

10-4217   Skid roller to fit 2-1/2" hitch bar                                             $166.35

10-4217-3   Skid roller to fit 3" hitch bar                                                $171.35

10-3224   Wheel only (includes roller bearing, zerk axle & nut)      $55.24
Spacer Kit for Hitch Bar Mounted Rollers         #10-5217


 Spacer kits to extend the length of both hitch bar mount skid rollers are available. For hitches that have receivers welded to the bottom of the hitch bar the spacers can be bolted between the roller assembly and the bar. This lengthens the skid wheel assembly so that it hangs down lower than the hitch.

Drops the wheel down an extra 2.25" for a total height of 5.75" from the bottom of the hitch bar to the bottom of the wheel.

10-5217   Fits 2.5" Hitch Bar
10-5217-3   Fits 3" Hitch Bar

Spacer kits contains spacers, plates, and hardware for one pair of hitch rollers only! The parts are shown in red.

10-5217   Sold in pairs of two   $40.79

10-5217-3   Sold in pairs of two   $40.79
Roller Skids        #10-4200
 Replace old worn Skid Bars with "New Roller Skid Bars"

2.5" x 1.5" wide solid steel wheel with .5" diameter hardened steel axle (no bearings).


10-4200   Sold in pairs of two   $128.97
Roller Skids        #10-4201
 Replace old worn Skid Bars with "New Roller Skid Bars"

3" x 2-3/16" wide solid steel wheel with roller bearings, grease seals, and zerk axles for easy lubrication.


10-4201   Sold in pairs of two   $194.49
Maxi steel Roller, Weld on
#10-4203
 3" x 2-3/16" wide solid steel wheel with roller bearings, grease seals, and zerk axle for easy lubrication.

Total height measures 3.375" from the top of mounting plate to the bottom of the wheel.

10-4203   Sold individually   $69.86
Micro steel Roller, Weld on
#10-5202
 The Micro is Paktron's lowest profile roller. Ideal for any low vehicle of any size or type. This 2" x 2" solid steel wheel has a hardened steel spanner bushing, zerk axel, and grease seals to keep grease in and dirt out.

Total height measures 2.375" from the top of the mounting plate to the bottom of the wheel.

10-5202   Sold individually   $37.64
Mini steel Roller, Weld on
#10-4202
 The mini is an economy roller and is ideal for drop hitches and skid bars. 2.50" x 1.50" wide solid steel wheel with .50" diameter hardended steel axle (no bearings).

Total height measures 2.875" from the top of mounting plate to the bottom of the wheel.

10-4202   Sold individually   $29.90

10-4214   Wheel only   $20.80 each

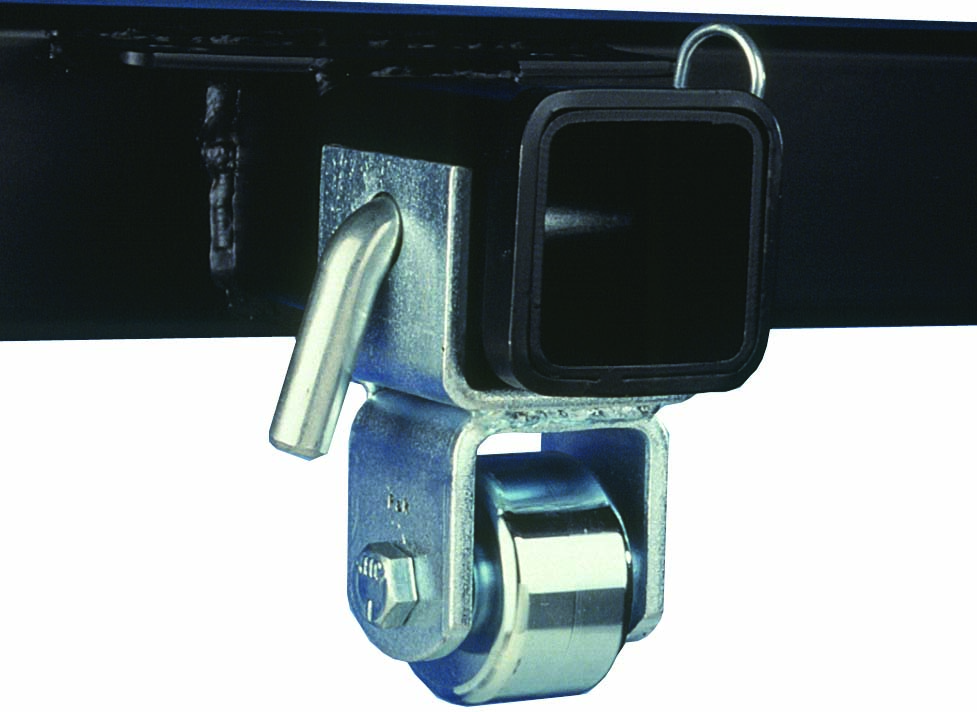

2.50" Hitch Protector        #10-4216
 This item protects the receiver and hitch post from road damage. Receiver and hitch pin are NOT included. 2.50" x 1.25" solid billet steel wheel.

For older models which had plastic wheels, there is a replacement wheel/ upgrade kit available containing the steel wheel, heavy duty axle bolt, washers and lock nut.

10-4216   Hitch protector (1)   $39.12

10-4214  Replacement wheel only $20.80

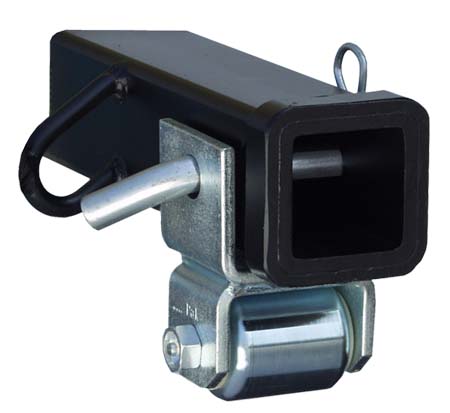

2" Hitch Protector        #10-5216
 Hitch protector with 2" x 2" solid steel wheel. Held on by a regular hitch pin (not included). Also can be used while towing. Wheel has a hardened steel spanner bushing, zerk axle and grease seals to keep grease in and dirt out.


10-5216   Sold individually   $49.70

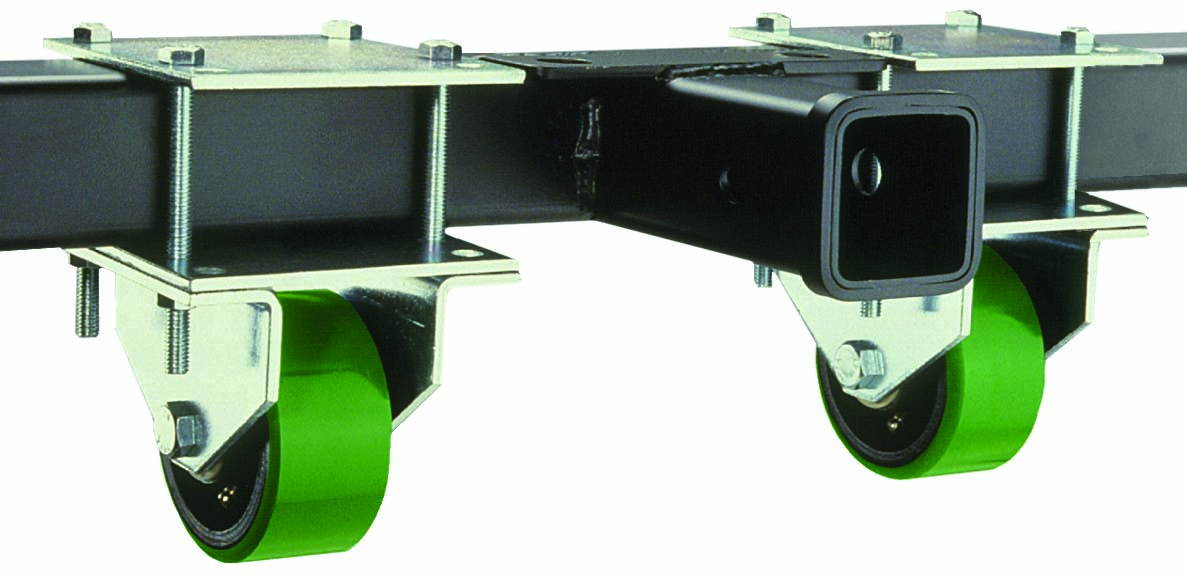

Rigid Caster        #10-2217
 Rigid steel universal caster fits both 2.5" and 3.5" hitch bars. 4"x2" metal wheel with a 1/4" tough urethane outer edge. Includes mounting brackets and hardware. Ideal for motorhomes up to 30ft.


Replacement wheels available please see the "Additional RV Products" page for details.

10-2217   Sold in pairs of two   $113.32
Swivel Caster        #10-2219
 Swivel, hitch mount casters fit 2.5" hitch bars only. 4"x2" metal wheel with a 1/4" tough urethane outer edge. Includes mounting brackets and hardware. Ideal for motorhomes up to 30ft.


Replacement wheels available please see the "Additional RV Products" page for details.

10-2219   Sold in pairs of two   $110.38
6" Wheels        #10-4208
 Great for the largest and heaviest front engine motorhomes and trailers. Massive drop forged steel swivel caster. 6" x 2" metal wheel with a 1/4" tough urethane outer edge. Includes mounting brackets and hardware.

Total height measures 7.50" from the top of mounting plate to the bottom of the wheel. The weight capacity is 2,500 Ibs per wheel.

Replacement wheels available please see the "Additional RV Products" page for details.

10-4208   Sold in pairs of two   $267.99
5" Wheels        #10-4205
 Excellent for front engine motorhomes and trailers up to 34 ft. Large cold forged steel swivel caster. 5" x 2" metal wheel with a 1/4" tough urethane outer edge. Includes mounting brackets and hardware.

Total height measures 6.75" from the top of mounting plate to the bottom of the wheel. The weight capacity is 1,500 Ibs per wheel.

Replacement wheels available please see the "Additional RV Products" page for details.

10-4205   Sold in pairs of two   $181.10
4" Wheels        #10-4218
 Ideal for low profile front engine motorhomes and trailers up to 30 ft. Cold forged steel swivel caster. 4" x 2" metal wheel with a 1/4" tough urethane outer edge. Includes mounting brackets and hardware.

Total height measures 5.75" from the top of mounting plate to the bottom of the wheel. The weight capacity is 1,500 Ibs per wheel.

Replacement wheels available please see the "Additional RV Products" page for details.

10-4218   Sold in pairs of two   $121.85
